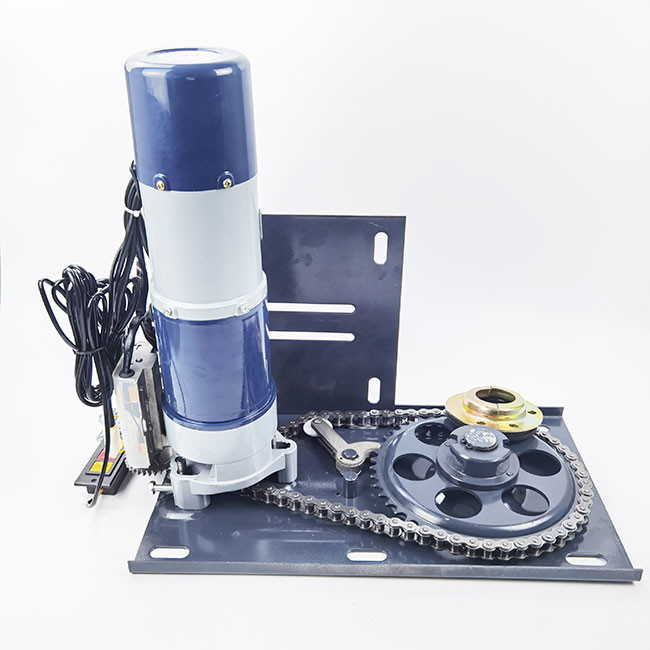

Ac 220v Single 800kg Copper Garage Roller Shutter Motors Commercial Use
Gatech roller shutter motor has been continuously exported for over ten years and is our best selling product.This rolling shutter motor is easy to install and has proven to be a reliable accessory in a variety of application. Such as buildings, garages, shopping malls, factory, warehouses, docks, airports, etc.It has the following advantages:
1. Nice designs with powerful drive.
2. With overheat protection, overload protection.
3. Easy to install and maintain, long useful life.
4. Could operate by remote control, push button, and manual chain.
5. Could work with UPS, so without worrying about power off.
6. With Chain-break protection device, also could work with safety by brake, ensure the safety of your life and property.
7. bracket size:505*280*3.0/ 280*280*3.0, 495*280*3.0/280*280*3.0, also other size can be chosen
| Model | Rated output torque (N.m) | Rated output speed (r/min) | Motor power (w) | Rated voltage (V/Hz) | Rated current (A) | Continuos working time(min) | Durm dube outer diameter (mm) | Max lifting force (kg.f) | Max lifting height (m) |
| AC300-3P | 168 | 5.4 | 250 | 380/50 | 1.5 | 15 | 114 | 300 | 6 |
| AC600-3P | 343 | 5.4 | 250 | 380/50 | 1.5 | 15 | 140 | 600 | 6 |
| AC800-3P | 647 | 5.4 | 370 | 380/50 | 2.3 | 15 | 165 | 800 | 6 |
| AC1000-3P | 809 | 5.4 | 370 | 380/50 | 2.8 | 15 | 165 | 1000 | 7 |
| AC1300-3P | 1401 | 4 | 850 | 380/50 | 3.2 | 15 | 219 | 1300 | 8 |
| AC1500-3P | 1617 | 4 | 1000 | 380/50 | 3.8 | 15 | 219 | 1500 | 12 |
| AC2000-3P | 2450 | 3.6 | 1000 | 380/50 | 4.1 | 15 | 245 | 2000 | 12 |
Why Choose us?
GATECH is a professional R&D, production and sales of various forms of electric door openers. The existing equipment is excellent, the technical force is strong, and it has strong machining ability and microcomputer control system design ability, and can provide the mechatronics function for the majority of users in time. The company strives to maintain the brand, develop the market with integrity, pursue perfect functions with meticulous design, ensure product quality with precise manufacturing, open up the market with sincere service attitude, strive for survival with quality, and develop with quality as our tenet and development. Our products are sold all over the country and export to all over the world.
